Customized Solutions for JMZ-TK-8A Meeting Your Unique Vibration Control Needs
JMZ-TK Series
No two industrial vibration challenges are identical. Differences in equipment weight, center-of-gravity distribution, disturbance frequency, and installation environment require customized vibration control solutions. Xi'an Hoan Microwave Co., Ltd. offers the JMZ-TK series as a platform for tailored vibration isolation solutions.
Our experienced engineering team provides comprehensive services including consultation, testing, design, and production to meet your specific requirements.
Load and Performance Customization
The JMZ-TK series offers a rated load range from dozens of kilograms to several tons. Our engineers can precisely adjust material, contact area, and preload to optimize damping coefficient and natural frequency for your equipment's dynamic characteristics.
Structure and Interface Customization
We can customize overall dimensions, mounting hole positions, and connection methods (top, bottom, or side mounting). Special designs include low-profile structures for height-restricted spaces and safety chains for anti-loosening requirements.
Environmental Adaptability Customization
For extreme conditions like ultra-high vacuum, high radiation, or ultra-low temperatures, we employ special materials, lubricants, and surface treatments to ensure stable performance.
This tailored approach makes the JMZ-TK series ideal for aerospace, naval, and laboratory applications where reliability is critical.

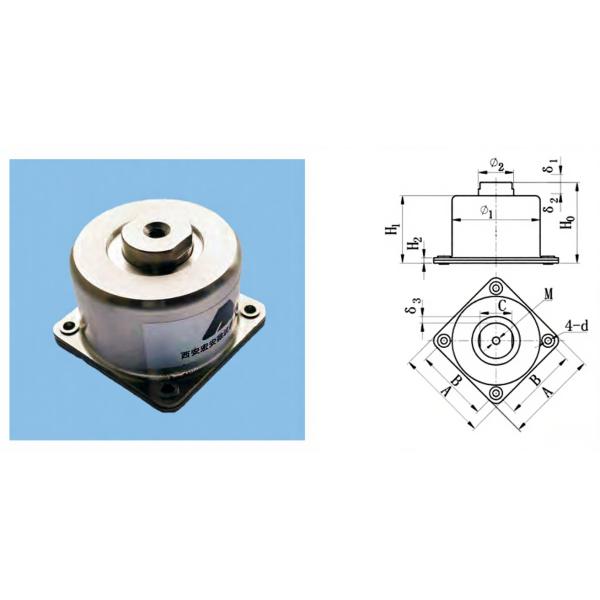

Structural Dimension Diagram
Installation Dimensions
| Model |
B |
M |
d |
A |
C |
∅1 |
∅2 |
H1 |
H2 |
| JMZ-TK-2.5A～8A |
46 |
6 |
4.1 |
58 |
20 |
55 |
22 |
36 |
3.6 |
| JMZ-TK1-25A/40A/50A |
63 |
12 |
8.2 |
78 |
20 |
70 |
22 |
56 |
6 |
Technical Parameters
| Model |
Nominal Load (N) |
Load Range (N) |
Natural Frequency fn≤(Hz) |
Loading Working Height H0±1(mm) |
Limit Displacement |
Maximum Vibration Transmissibility ηv≤ |
Impact Resistance Test |
Service Life (year) |
|
|
|
|
|
Vertical Direction up(δ1) |
Vertical Direction down(δ2) |
horizontal (δ3) |
|
|
|
| JMZ-TK-2.5A |
25 |
20～30 |
33 |
42 |
4 |
4 |
4 |
3 |
100g |
10 |
| JMZ-TK-4A |
40 |
30～50 |
33 |
42 |
4 |
4 |
4 |
3 |
100g |
10 |
| JMZ-TK-5A |
50 |
40～60 |
33 |
42 |
4 |
4 |
4 |
3 |
100g |
10 |
| JMZ-TK-6A |
60 |
50～70 |
33 |
42 |
4 |
4 |
4 |
3 |
100g |
10 |
| JMZ-TK-7A |
70 |
60～80 |
33 |
42 |
4 |
4 |
4 |
3 |
100g |
10 |
| JMZ-TK-8A |
80 |
70～90 |
33 |
42 |
4 |
4 |
4 |
3 |
100g |
10 |
| JMZ-TK1-25A |
250 |
200～300 |
20 |
70 |
7 |
8 |
7 |
3 |
60g |
10 |
| JMZ-TK1-40A |
400 |
300～480 |
20 |
70 |
7 |
8 |
7 |
3 |
60g |
10 |
| JMZ-TK1-50A |
500 |
400～600 |
20 |
70 |
7 |
8 |
7 |
3 |
60g |
10 |
